• Cold forged pins to 1 1/8" (28.6mm) dia for consistent grain flow, maximum strength and superior surface finish.
  (Our competitors do not have the capability to cold form pins from 28.6mm dia. Wire)

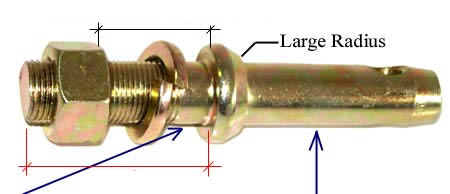

• Large radius at fracture point (difficult to achieve in cold forging).
• Guaranteed base material to min. specifications S1040 carbon steel.

• All pins correct length to accept stay bars or next linkage category bush upgrade.
• Various length stepped shoulders replaced by straight shank to increase strength and reduce your inventory. Stepped types available for 40 year old Ferguson tiller and mowers.
• Only BARE-Co have invested in special thin wall nuts, to provide clearance for straight shank design on plough cross shafts etc.

3/4" UNF (19mm)

CAT 1 = 22mm

B198

CAT 2 = 28.6mm

B197

7/8" UNF (22mm)

CAT 1 = 22mm

B200

CAT 2 = 28.6mm

B202

CAT 3 = 36.5mm

B2520

1" SAE (25.4mm)
14TPI

CAT 1 = 22mm

B101

CAT 2 = 28.6mm

B102

CAT 3 = 36.5mm

B2521

1 1/8" UNF (28.6mm)

CAT 1 = 22mm

B201

CAT 2 = 28.6mm

CAT 3 = 36.5mm

PART No

DESCRIPTION

Extra Long Thread Shank: "A" = 75mm

B2406

CAT 1 Replaces
I.H.C. 802585R2

B2407

CAT 2 Replaces
I.H.C. 802586R2

B199

Suits old FERGUSON
TILLER "A" = 16mm
Replaces 646038MI
CAT 1 Pin
22mm dia. shoulder

B2951

Suits M.F. 532 MOWER
CAT 1 Pin
shoulder 28.6mm dia x 60mm long
Replaces
195531MI - 195532M1

B205

DUAL CAT 1-2 Suits
Frame Thickness
10 TO 25mm
Suits 1" (25.4mm)
HOLE drilling

B206

Suits 1 1/8"
(28.6mm) HOLE drilling

B210

Suits (22mm) drilling
A = 90mm B = 55mm

B214

Suits (28.6mm) drilling
A = 50mm B = 80mm

B7214

Suits (50mm) RHS
(28.6mm) drilling
A = 55mm B = 110mm
