Silage & Hay Tines

Silage & Hay Tines

STRAIGHT TINES

PART No.

TINE LENGTH

DESCRIPTION

B84003

810 mm (32")

CONUS I TYPE
M22 Fixing Nut

Tightening Torque for Nut: 280 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

B84004

1000 mm (39")

B84005

1100 mm (43")

B84007

820 mm (32")

CONUS II TYPE
M28 Fixing Nut

Tightening Torque for Nut: 460 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

B84008

980 mm (38 1/2")

B84009

1100 mm (43")

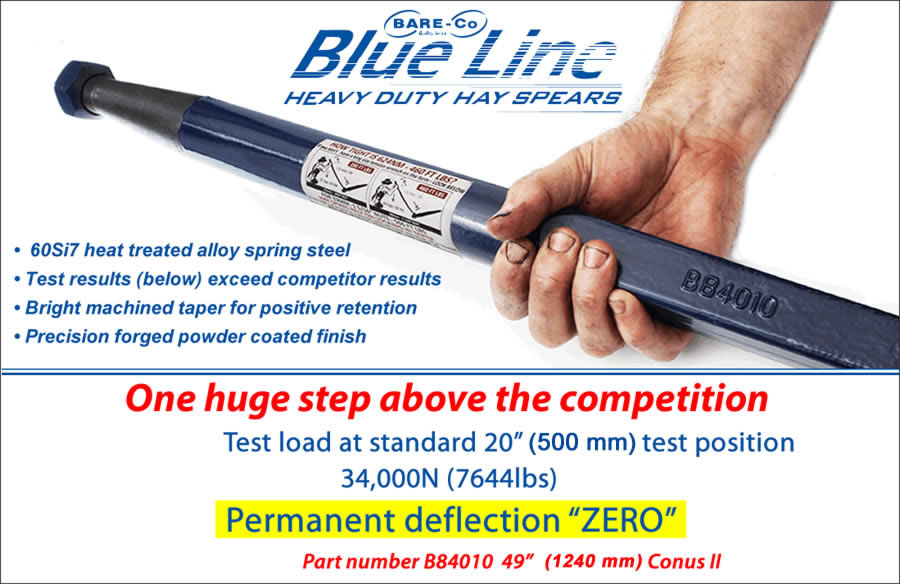

B84010

1240 mm (49")

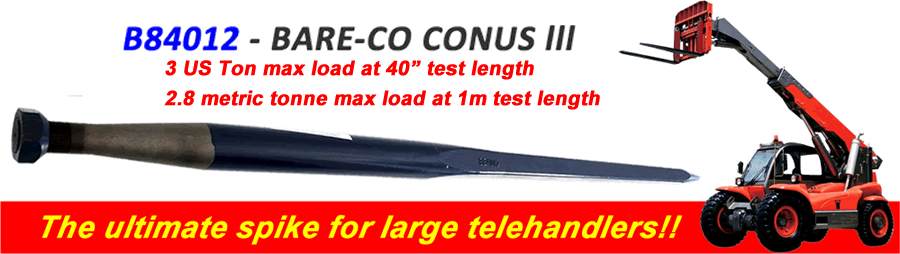

B84012

1400 mm (55")

CONUS III TYPE
M33 x 2 Fixing Nut

Tightening Torque for Nut: 1000 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

CURVED TINE

B84011

600 mm (24")

Curved Grab Tyne - CONUS I Keyed Type

WELD-IN MOUNTING SLEEVES

PART No.	DESCRIPTION
B84100	CONUS I TYPE 50mm (1.968") Outside Diameter
B84101	CONUS II TYPE 57mm (2 1/4") Outside Diameter
B84013	CONUS III TYPE 80mm (3.149") Outside Diameter
B84102	Special CONUS I TYPE 50mm (1.968") Outside Diameter - Keyed for Curved B84011 Grab Tyne

REPLACEMENT MOUNTING NUT

PART No.	DESCRIPTION
B84105	NUT 22mm (0.866") thread dia fits CONUS I TYPE - Fits LATE TYPE BLUE LINE spikes
B84106	NUT 28mm (1.125") thread dia fits CONUS II TYPE - Fits LATE TYPE BLUE LINE spikes
B84014	NUT fits CONUS III TYPE BLUE LINE spikes
