Parts to Fit VICON Spreaders
PARTS TO FIT VICON SPREADERS

SPOUT PARTS TO FIT VICON
PARTS
PART No.
REPLACES
DESCRIPTION
APPLICATION
B6764
17895466
Spout Assembly
Early Model PS202, PS203
B6765
90083262
Clamp c/w bolts nuts and washers
B6766
17871016
Diffuser Band c/w fixing pins
B7764
17896041
Spout Assembly 558mm long
Late Model PS202, PS203
Late Model PS303 with Standard Spout ONLY
B7744
79220019
 Regulator Bar PS02/03/04
B7740
79750039
 Diffuser Band

PS03/04
B7747
90070164

Top Cap

 PS02/03/04
B7746
90020041
 Ring c/w Bolts, Nuts and Washers PS400/500/600
B7743
90020020

Top Disc 4 Hole


PS400/500/600
PS02/03/04
B7742
90015671
 Bottom Disc

PS/02/03/04
B7741
79220020
 Clamp C/W Bolts, Washer and Square Nuts

PS02/03/04

Suits B7764 Spout Assembly

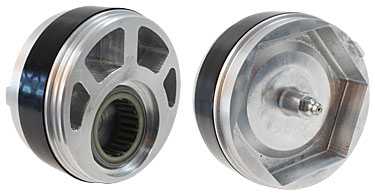

B7748
97896442
 Adjusting Block Assembly

PS02/03/04

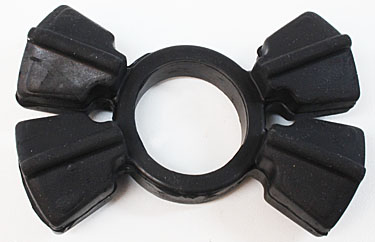

B7749
90070527
 Coupling

PS02 / PS03 with
Gearbox 22104/106/107/109

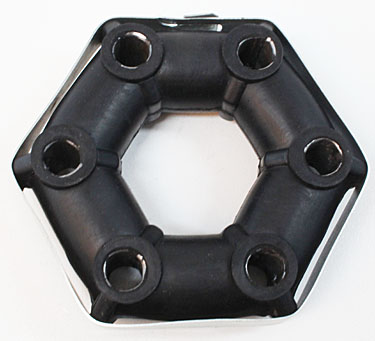

B7750
46301001

Coupling


PS400/500/600
PS02/03/04

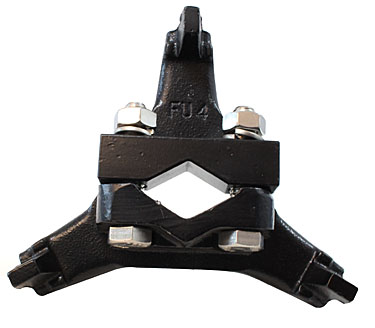

B7751
90021406

Agitator

PS202/203/302/303

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
