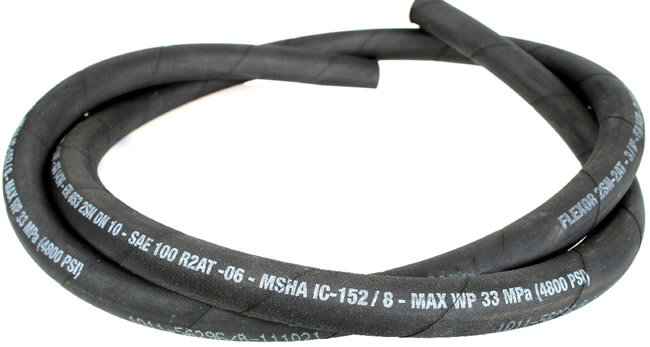

Meets flame resistance: US MSHA designation IC152-8 Reinforcement: 2 braids high tensile steel wire. Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber. MSHA compliant. Inner Tube: nitrile Temperature Range:  -40°F to 212°F

Note: Part Number = One Foot
Part No.	Size	Approximate Reel Lengths	Working Pressure	Burst Pressure	Minimum Bend Radius (Inches)	Weight Lbs / Foot
B19330	1/4"	410 / 475 feet	5,800 psi	23,200 psi	4"	0.24
B13662	3/8"	328 / 394 feet	4,800 psi	19,200 psi	5"	0.34
B13663	1/2"	377 / 426 feet	4,000 psi	16,000 psi	7"	0.43
B19331	3/4"	213 / 246 feet	3,120 psi	12,480 psi	9 1/2"	0.61
B19333	1"	140 / 252 feet	2,400 psi	9,600 psi	12"	0.88
