10" / 12" Dual Plate Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
3 FINGERS - 10" / 12" (300mm) Dual Clutches
with COARSE spline P.T.O. plate
3 FINGERS - 10" / 12" (300mm) Dual Clutches
with FINE spline P.T.O. plate

* Full kit includes clutch assembly, plates and all bearings shown.
APPLICATION
New Flywheel
Clutch Kit
Clutch Cover
Main Drive Plate
PTO Plate
Release Brg.
Brg. Carrier
Flywheel Pilot Brg.
10" / 12" Dual Clutch
10 Spline PTO Plate
6 Red Springs
Option for
MF135
See photo below
B2519
Includes Ring Gear
=740681M91
3819664M91
Not included in the kits
to the right.
B9255
*
B2909
=3620407M91
887881M91
6 red springs
Main Plate NOT Included
[NOT included in clutch assemblies ]
B2359
=3599462M92
=3599462M91
12" x 1 1/8"
x 10 splines
Dish Hub
Rigid
B2354
=887900M1
[Included In
Clutch Assembly]
10" x 1 3/4
x 10 splines
Bearing
B2329
=833084M1
892862M1

Carrier
B2792
Std trans.
2 1/8" I.D.
=183129M2

B487
Multi Power
2 3/16" I.D.
=886727M2

B2321
=832960M3
828123M1
195174M1
10" / 12" Dual Clutch
10 Spline PTO Plate
12 Red Springs
Option for
MF165, 175
N/A
B9256
*
B2911
=3620408M91
12 red springs
Main Plate NOT Included

10" / 12" Dual Clutch
25 Spline PTO Plate
6 Red Springs
Option for
MF135, 231, 235, 240, 245, 250, 255


B2519
Includes Ring Gear
=740681M91
3819664M91
Not included in the kits
to the right.

B9257
*
B3719
=3599463M9
3610273M91
6 red springs
Main Plate NOT Included
B2888
=3478359M91
3620417M91
[Included In
Clutch Assembly]
10" x 1 5/8" x 25 splines

10" / 12" Dual Clutch
25 Spline PTO Plate
9 Red Springs
Option for
MF165, 265, 270, 275, 565, 575, 675
N/A
B9258
*
B3700
=3610271M92
=3610271M91
9 red springs
Main Plate NOT Included

10" / 12" Dual Clutch
25 Spline PTO Plate
12 Red Springs
Option for
MF282, 283, 285, 290, 383, 590, 690
N/A
B9259
*

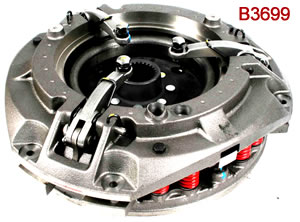

B3699
=3610268M91
12 red springs
Main Plate NOT Included

10" / 12" Dual Clutch
25 Spline PTO Plate
6 Red Springs
Sprung Hub Main Plate
MF350

B2519
Includes Ring Gear
=740681M91
3819664M91
Not included in the kits
to the right.
B9260
*
B3719
6 red springs
=
3599463M91
[NOT included in clutch assemblies]
B272
=3610274M92
3599460M92
Organic sprung hub replaces Rigid Hub
12" x 1 1/8" x 21 splines

10" / 12" Dual Clutch
25 Spline PTO Plate
9 Red Springs
Sprung Hub Main Plate
MF253, 355, 360
B9262
*
B3700
9 red springs
=
3610271M91
10" / 12" Dual Clutch
25 Spline PTO Plate
9 Red Springs
Sprung Hub Main Plate
MF365, 375
N/A

10" / 12" Dual Clutch
25 Spline PTO Plate
12 Red Springs
Sprung Hub Main Plate
MF383, 390, 471, 481,
573, 583, 285S

N/A
B9264
*
B3699
12 red springs
=
3610268M91
