Splined Shafting & Couplings

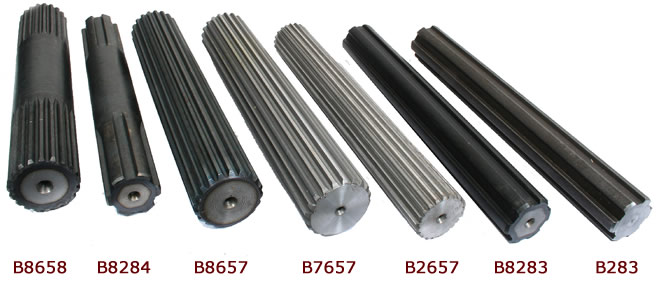

FULL SPLINED SHAFT

PART No.	DESCRIPTION	SPLINE SIZE	LENGTH
B283	Splined shafting 1045 carbon steel	1 3/8" dia x 6 spline	10" (250mm)
B6283			29 1/2" (750mm)
B7283			9.8ft (3 mtrs)
B2657		1 3/8" dia x 21 spline	10" (250mm)
B7657		1 3/4 dia x 20 spline	10" (250mm)
B9657		1 3/4 dia x 20 spline	39" (1000mm)
B8283	Heat treated high tensile grade 8	1 3/8" dia x 6 spline	10" (250mm)
B8657		1 3/4" dia x 20 spline	10" (250mm)

SPLINED SHAFT - PLAIN CENTRE

PART No.	DESCRIPTION	SPLINE SIZE	LENGTH
B8284	Plain Centre Splined shafting Heat treated high tensile	1 3/8" dia x 6 spline	10" (250mm)
B8658		1 3/4" dia x 20 spline

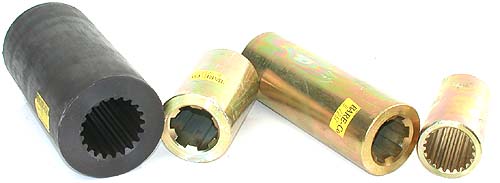

SHAFT COUPLINGS

PART No.	DESCRIPTION	O.D.	SPLINE SIZE	LENGTH
B287	Splined sleeve 1045 carbon steel	2 1/8 " (54mm)	1 3/8" x 6 spline	3 1/4" (82mm)
B7287				6" (150mm)
B2418		2 1/8 " (54mm)	1 3/8" x 21 spline	6" (150mm)
B6418			1 3/4" x 20 spline	6" (150mm)
B8287	Heat treated high tensile grade 8	2 1/8 " (54mm)	1 3/8 x 6 spline	6" (150mm)
B9418		3" (75mm)	1 3/4" x 20 spline	Heavy wall 6" (150mm)
