H/D CUSHION COUPLING & UNI JOINT

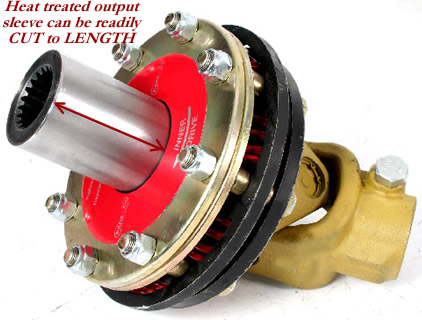

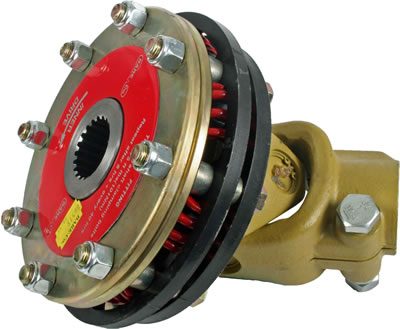

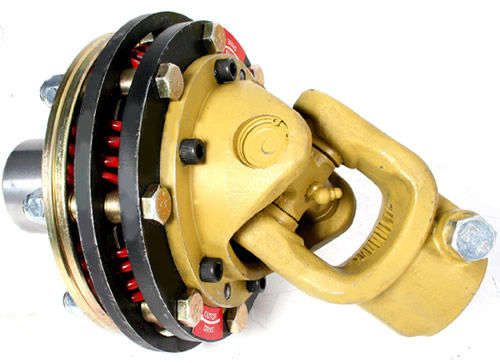

HEAVY DUTY BARE-Co PATENT CUSHION COUPLINGS WITH UNI JOINT
B6512    Clockwise Rotation


B6512     Clockwise Rotation

STANDARD VERSION
SHORT VERSION
Overall Length 12.6" (320mm)
Overall Length 9.45" (240mm)
  • Combined Uni Joint with Cushion Coupling allows for deck flexing under load.
  • Patented Heavy Duty Cushion Coupling providing limited predetermined rotational travel whilst carrying a MASSIVE 5000 NM (3688 ft/lbs) of Torque.
  • Danish Super Valve Spring Quality drive springs combined with 1 piece heat treated Drive and Driven Plates provide ultimate reliability.
  • Designed for LARGE Multihead Cutters with Timed Blades which preclude the use of safety slip clutches.
  • Without the Bare-Co® Heavy Duty Cushion Coupling, these machines can suffer outer gearbox coupling & shaft failures due to the flywheel effect of associated cutter disks being combined with tractor PTO torque.
STANDARD Version 1 3/8" x 6 Spline Couplings
PART No.
Diameter
Overall Length

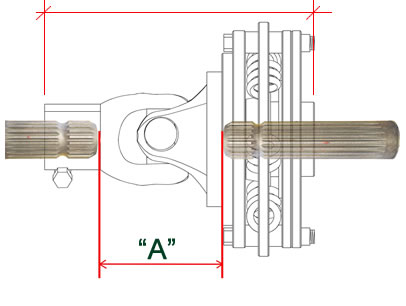

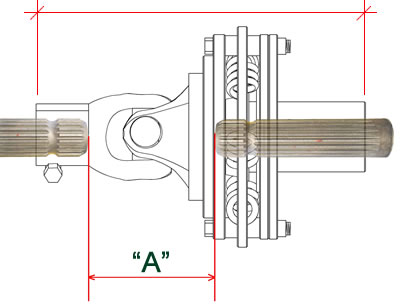

Dimension "A"
Gap Req between shafts
Rotation
Description
Max Gap
Min Gap
B6515
8" dia (200mm)
12.6" (320mm)
to...
9.45" (240mm)
[can be cut to this
length by the user]
9.8" (250mm)
5.118"
(130mm)
[If unit cut
to length]
Anti-Clockwise
1 3/8" x 6 spline female - female
B6514
Clockwise
1 3/8" x 6 spline female - female
SHORT Version 1 3/8" x 6 Spline Couplings
B6516
8" dia (200mm)
9.45" (240mm)
6" (150mm)
5.118"
(130mm)
Anti-Clockwise
1 3/8" x 6 spline female - female
B6517
Clockwise
1 3/8" x 6 spline female - female
STANDARD Version 1 3/4" x 20 Spline Couplings
B6511
8" dia (200mm
12.6" (320mm)
to...
9.45" (240mm)
[can be cut to this
length by the user]
9.8" (250mm)
5.118"
(130mm)
[If unit cut
to length]
Anti-Clockwise
1 3/4" x 20 splines female - female
B6512
Clockwise
 1 3/4" x 20 splines female - female
SHORT Version 1 3/4" x 20 Spline Couplings
B6518
8" dia (200mm
9.45" (240mm)
6" (150mm)
5.118"
(130mm)
Anti-Clockwise
1 3/4" x 20 splines female - female
B6519
Clockwise
 1 3/4" x 20 splines female - female
FEATURES
  • Replaces light duty rubber couplings
  • Radial springs absorb shocks with radial travel limited to 1/2 " (12mm) to suit timed shaft applications (Rotary cutters with overlapping timed blades)

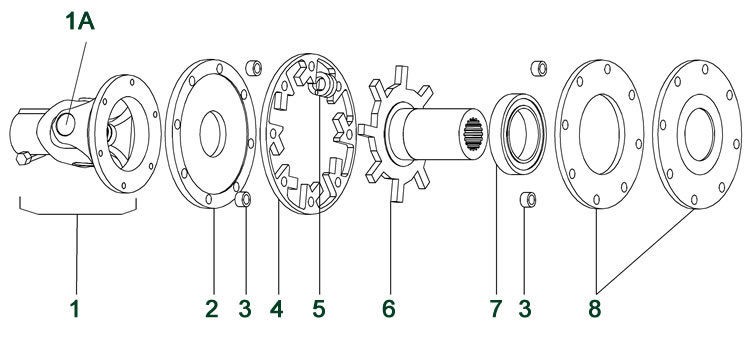

COUPLING - SPARE PARTS

REF. No.
PART No.
DESCRIPTION
1
B6543
 Flange Joint Assembly -1 3/8" x 6 Spline
B6544
 Flange Joint Assembly -1 3/4" x 20 Spline
B6545
 Flange Joint Assembly with Shear Bolt Yoke - 1 3/4" x 20 Spline
1A
A3606
 Uni - Cross
2
B6454
 Backing Plate for 1 3/8" x 6 Spline
B6455
 Backing Plate1 3/4" x 20 Spline
3
B6523
 Spacing Collar
4
B6524
 Outer Spider Plate
5

B3727

B3730

Drive Spring RED- 8 Required

Drive Spring GREEN- 8 Required
6
B6525
 Inner Spider 1 3/8" x 6 Spline Female - Clockwise
B6538
 Inner Spider 1 3/8" x 6 Spline Female - Anticlockwise
B6526
 Inner Spider 1 3/4" x 20 Spline Female - Clockwise
B6539
 Inner Spider 1 3/4" x 20 Spline Female - Anticlockwise
7
B503
 Bearing - fits 1 3/8" x 6 Spline Spider
B2881
 Bearing - fits 1 3/4" x 20 Spline Spider
8
B6534
 Bearing Housing - fits 1 3/8" x 6 Spline Spider
B6535
 Bearing Housing - fits 1 3/4" x 20 Spline Spider
