Safety Guards: Wide Angle for BYPY

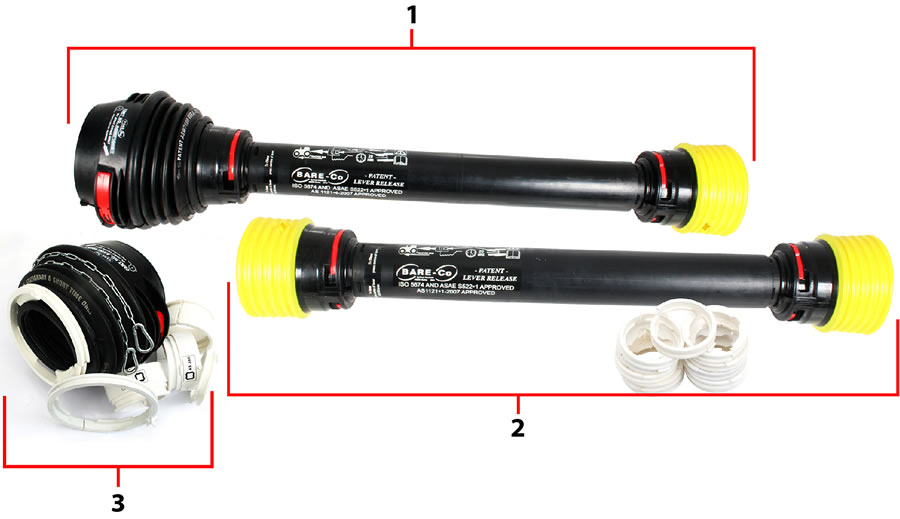

BARE-Co PATENT LEVER RELEASE WIDE ANGLE SAFETY GUARD for BYPY SHAFTS
REF
PART No.
CLOSED
OPEN.
DESCRIPTION
APPLICATION
1
ASW30090BY
40" (1m)
65" (1.6m)
Complete Shaft Safety Guard Assembly
(Includes the parts in REF 2 and 3 shown below)
BYPY - Bondioli Shafts
Triangle or hollow square drive tube
Series 6, 7, 8
ASW30130BY
65" (1.6m)
98" (2.5m)
2
AS30090
40" (1m)
65" (1.6m)
Standard (non Wide Angle) PTO Guard
(Included in REF 1 above)
AS30130
65" (1.6m)
98" (2.5m)
3
ASW7100BY
Wide Angle Joint Cover
(Included in REF 1 above)
