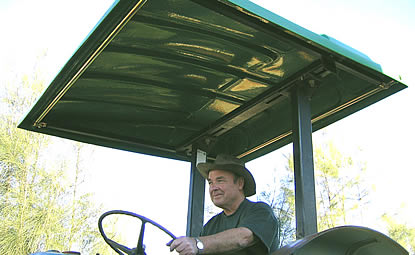

BARE-Co Senior Canopy
See: HEAVY DUTY SWING-DOWN REVOLVINGBEACON below

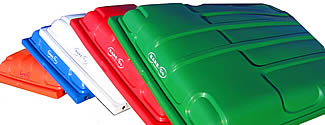

CANOPY
B2574
WHITE CANOPY
B2575
GREEN CANOPY
B2576
ORANGE CANOPY
B2577
BLUE CANOPY
B2578
RED CANOPY
  • 60" Wide x 65 " Long (1525mm x 1650mm)
  • Moulded from virtually indestructable flexible U.V. stabilised Polyethylene
  • Exclusive Bare-Co Socket Mounting System
    for Torsion Bars
  • NO mounting bolts pass through moulding
CANOPY KITS
CANOPIES
SINGLE KIT PART NUMBER



Includes any color canopy together with the mounting kit.

KIT No. CK5

For HOOP TYPE ROPs

Up to 52" (1320mm) wide

Includes Canopy and B6602 OR B4621mounting kit.



KIT No. CK6

For Bare-Co CROSS BAR type ROP frames.

Includes Canopy and B6603 mounting kit.


PART No.
APPLICATION

B6603

MOUNTING KIT

Mounts the canopy to Bare-Co F1 and MF1 (Cross Bar Type) ROP Frames

B6605
 Bare-Co JD3 and IHC6 very large frames

B6602


MOUNTING KIT

Mounts the canopy to HOOP TYPE ROP Frames, CURVED or SQUARE TOP,  both RIGID or FOLDING up to 52" wide (1320mm) with leg thickness up to 4" x 2" (100mm x 51mm)

Fits Bare-Co EMF1 (Hoop Type Frame)


B4621

MOUNTING KIT

Same as B6602 above - EXCEPT fitting is for ROP Frames with
LARGE SECTION LEGS of   4"x 4" (100 x 100),
5"x 2" (125 x 50) or 6"x 2" (150 x 50)
Fits Bare-Co F10 ROP Frame

B6604

MOUNTING KIT

Mounts the canopy to ANY 4 POST ROP FRAME

HEAVY DUTY SWING-DOWN REVOLVING BEACON

Heavy duty swing-down revolving beacon.
Quick Release knob allows the unit to swing down for working under trees.
This is a heavy duty, industrial quality unit.

Replacement parts available.
Fits all Bare-Co polyethylene canopies
(Standard & Senior)
Part No.
Description
B2568
 12 Volt Full Kit (excludes switch & wiring)
B2569
 24 Volt Full Kit (excludes switch & wiring)
