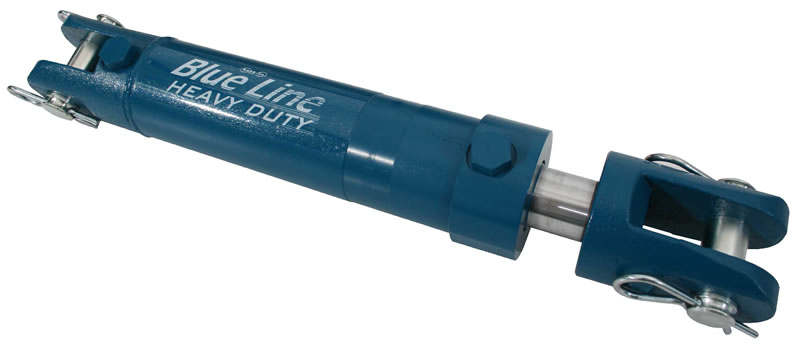

BLUE LINE - HEAVY DUTY HYDRAULIC
CYLINDERS |
Rated Working Pressure - 3,000 PSI (20,685 KPA) |
 |
 |
Part No. |
Bore |
Stroke |
Shaft Diameter |
Closed Length |
Port Size |
Pin Diameter |
Seal Kits |
B83035 |
2" |
8" |
1" |
20 1/4" |
9/16" UNF UN O-ring |
1" |
B88432 |
B83092 |
10" |
20 1/4" |
|||||
B83079 |
12" |
22 1/4" |
|||||
B83093 |
14" |
24 1/4" |
|||||
B83080 |
18" |
28 1/4" |
|||||
B83081 |
24" |
34 1/4" |
|||||
B83082 |
48" |
58 1/4" |
|||||
B83087 |
2 1/2" |
6" |
1 1/2" |
18 1/4" |
3/4" UNF UN O-ring |
B88435 |
|
B83031 |
8" |
20 1/4" |
|||||
B83101 |
10" |
22 1/4" |
|||||
B83091 |
12" |
24 1/4" |
|||||
B83100 |
14" |
26 1/4" |
|||||
B83094 |
18" |
30 1/4" |
|||||
B83095 |
24" |
36 1/4" |
|||||
B83029 |
3"
|
8" |
20 1/4" |
B88422 |
|||
B83089 |
12" |
24 1/4" |
|||||
B83098 |
16" |
28 1/4" |
|||||
B83090 |
18" |
30 1/4" |
|||||
B83096 |
24" |
36 1/4" |
|||||
B83038 |
3 1/2" |
8" |
1 3/4 " |
20 1/4" |
B88423 |
||
B83099 |
16" |
28 1/4" |
|||||
B83097 |
24" |
36 1/4" |
|||||
B83039 |
4" |
8" |
2" |
20 1/4" |
B88424 |
||
B83083 |
12" |
24 1/4" |
|||||
B83084 |
18" |
30 1/4" |
|||||
B83086 |
24" |
36 1/4" |
