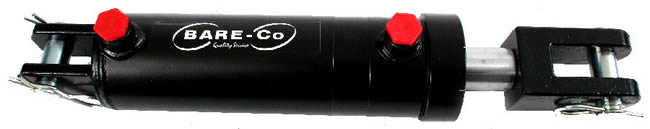

WELDED CYLINDERS WITH ASAE TYPE CLEVIS ENDS |
Heavy Duty High Pressure Cylinders with hard Chromium Plated Piston Rod
Rated Working Pressure 3000 PSI (20,685 kPa)
Replaces ASAE low pressure Tie Rod Cylinders shown below.
|
Part No. |
Bore |
Stroke |
Shaft Diameter |
Closed Length |
Port Size |
Pin Diameter |
Seal Kits |
|
B3088
|
1.5"
|
4"
|
7/8" |
14 1/4"
|
9/16" UNF |
1" |
B8421 |
|
B3085
|
6"
|
16 1/4"
|
|||||
|
B3035
|
2" |
8"
|
1 1/4"
|
20 1/4"
|
3/4" UNF
UN O-ring |
B8432 |
|
|
B3092 |
10" |
20 1/4" |
|||||
|
B3079
|
12"
|
22 1/4"
|
|||||
|
B3093 |
14" |
24 1/4" |
|||||
|
B3080
|
18"
|
28 1/4"
|
|||||
|
B3081
|
24"
|
34 1/4"
|
|||||
|
B3082
|
48"
|
58 1/4"
|
|||||
|
B3087 |
2 1/2" |
6" |
1 1/2"
|
16 1/4"
|
B8435 |
||
|
B3031 |
8" |
20 1/4" |
|||||
|
B3036
|
12"
|
22 1/4"
|
|||||
|
B3091
|
12"
|
24 1/4" Long Body |
|||||
|
B3094 |
18" |
30 1/4" Long Body |
|||||
|
B3095 |
24" |
36 1/4" Long Body |
|||||
|
B3029 |
3"
|
8" |
20 1/4" |
B8422 |
|||
|
B3030 |
12" |
22 1/4" |
|||||
|
B3089
|
12"
|
24 1/4" Long Body |
|||||
B3098 |
16" |
28 1/4" Long Body |
|||||
|
B3037
|
18"
|
28 1/4" |
|||||
B3090 |
18" |
30 1/4" Long Body |
|||||
|
B3096
|
24"
|
36 1/4" Long Body |
|||||
|
B3038
|
3 1/2" |
8"
|
1 3/4 " |
20 1/4"
|
B8423 |
||
B3099 |
16" |
28 1/4" Long Body |
|||||
|
B3097 |
24" |
36 1/4" Long Body |
|||||
|
B3039
|
4" |
8"
|
2"
|
20 1/4"
|
B8424 |
||
|
B3083
|
12"
|
22 1/4"
|
|||||
|
B3084
|
18"
|
28 1/4"
|
|||||
|
B3086
|
24"
|
34 1/4"
|
| "A" | "B" |
|
|||
| B3440 | 3/4" UNO | 1/2" NP |
