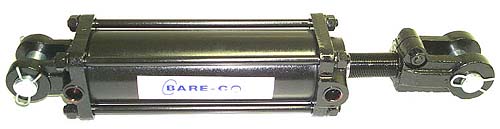

TIE ROD CYLINDERS ASAE TYPE |
Rated Working Pressure 2500 PSI (17,237 kPa)
Double Ported Heads for Convenient Hose Connection
Hard Chrome Plated Piston Rod
Part No. |
Bore |
Stroke |
Shaft Diameter |
Closed Length |
Port Size |
Pin Diameter |
Seal Kits |
B3022 |
2" |
8" |
1 1/8" |
20 1/4" |
3/8"NPTF |
1" |
B8431 |
B7434 |
2 1/2" |
B8439 |
|||||
B3013 |
12" |
22 1/4" |
|||||
B3015 |
3" |
8" |
1 1/4" |
20 1/4" |
1/2" NPTF |
B8440 |
|
B3016 |
12" |
22 1/4" |
|||||
B3023 |
16" |
26 1/4" |
|||||
B3020 |
18" |
28 1/4" |
|||||
B3014 |
3 1/2" |
8" |
20 1/4" |
B8438 |
|||
B3024 |
4" |
1 1/2" |
B8433 |
CYLINDER

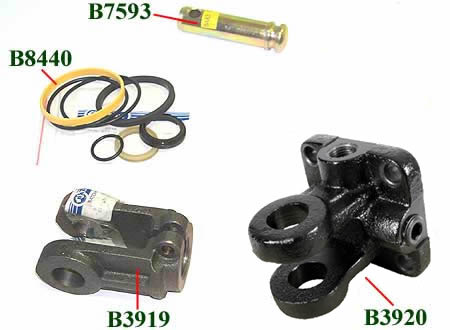

SPARE PARTS |
Cylinder Description |
Original Cyl Part No. |
Seal Kit |
Clevis Rod End |
Clevis End Cap |
Ram Pin |
BARE-Co (Black) Tie Rod Cylinders |
|||||
| 8" x 2"... 1 1/8" Piston Rod | B3022 |
B8431 |
B3915 |
B3917 |
B7593 B1200 |
8" x 2 1/2"... 1 1/8" Piston Rod |
B7434 |
B8439 |
B3916 |
||
12" x 2 1/2"... 1 1/8"Piston Rod |
B3013 |
||||
8" x 3"... 1 1/4" Piston Rod |
B3015 |
B8440 |
B3919 |
B3920 |
|
12" x 3"... 1 1/4" Piston Rod |
B3016 |
||||
| 16" x 3"... 1 1/4" Piston Rod | B3023 |
||||
18" x 3"... 1 1/4" Piston Rod |
B3020 |
||||
8" x 3 1/2"... 1 1/4" Piston Rod |
B3014 |
B8438 |
B3913 |
||
| 8" x 4 "... 1 1/4" Piston Rod | B3024 |
B8433 |
B3923 |
||
