NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

Type
Part No.
Replaces
Description
End Cat.
Min
Max
Application
A
B312
3405318M91

Economy Short
Cat. 1
19 1/2"
30"

TO20, TO30, Te20 , MF35,
MF135 with 32" Lower Links
B
B584
677197
1869954M91

Orig. Type Short
1
21"
28"
A
B316



Economy Long
1
24"
34"

MF135, 150 with 33" Lower Links
MF65 (if Cat. 1 both ends)
B
B586
677198
184361M91

Orig. Type Long
1
26"
32"
A
B319



Economy Long
1 & 2
25"
36"

MF65
MF165
MF240

When equipped with link
Cat. 1 one end Cat. 2 other end

B
B588
19875A91
894377M91

Orig. Type Long
1 & 2
26"
32"
A
B318
1894762M91

Economy Long
2
25"
37"

MF165, 175, 250, 275, 290
Where top link is Cat. 2 both ends +
All 4 wheel drive models with Cat. 2 linkage
B
B587
19876A91
893439M91

Orig. Type Long
2
26"
32"
C
B1
No
Equiv.

Heavy duty Long
2
25"
35 1/2"
D
B2660

Jumbo Long
2
25"
36"
D
B2417

Cat. 3 Jumbo Link
3

All applications with Cat. 3 top link
SPARE PARTS

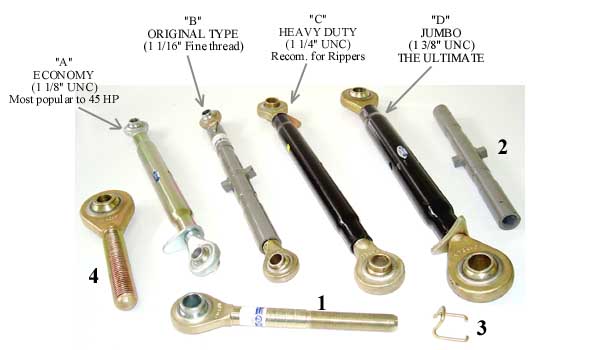

GO TO these pages for: TYPE "A" - TYPE "C" - TYPE "D" Spare Parts
Ref
Part No.
Replaces
Description
End Cat.
Thread
Application
1
B448
183619M92
L.H. Thread End
1
1 1/16"
Fine
Thread

Ball end to fit original type top links
(type "B" above)
B442
183615M93
L.H. Thread End
2
B449
184079M91
R.H. Thread End
1
B443
183623M93
R.H. Thread End
2
2
B437
184891M91
Short (17") Barrel
1 1/16"
Fine
Thread

Original type top links
(type "B" above)
B438
184362M91
Long (21") Barrel
3
B439
183614M2
Locking Clip
4
B2659


Cat. 2
Conversion End
1 3/8" UNC

MF2640 auto hitch top link
B2516


Cat. 3
