MF Rigid Bar Stabilizers
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

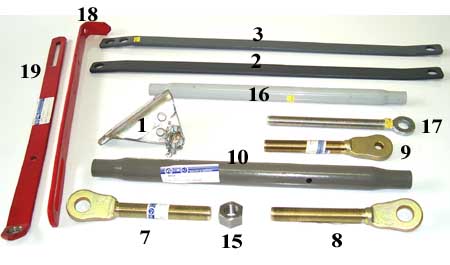

Ref
Part No.
Replaces
Description
Length
Application
Min.
Max.
1
B160
646105M1

L.H. Stay Bracket





TO20, TO30, TO35, Te20, MF35, 40, 50 , early MF135
B161
646100M1

R.H. Stay Bracket
2
B177
646102M1

Rigid Stay Bar
31 1/2"
31 1/2"

TO20, TO30, Te2 , MF35 with 32" Lower Links
3
B178
562620M1
31 1/2"
33"

Universal fits TO20, TO30, TO35, Te20, MF35, 50, 135, 150
4
B158
562653M91
936112M91

Heavy Duty Stay Bar with extra adjustment
Large 7/8" dia. thread
7/8" dia. eyes
26"
37"

Te20, MF35, 135 + following models equipped with standard (thin type) tubular stay bars (7/8" dia. pins)
MF165, 175
B180
184568M91

Tubular Stay Bar
29"
35"

MF65 only (small 3/4" eye tractor end)
Can fit B158 HD bar with B1716 stay pin (SEE)
5
B498



Extra HD Orig. Equip. type Stay Bar with 1" dia. eye at implement end
5/8" dia. tractor end





MF165, 175, 1080, 1085
Equipped with heavy duty stabilizer equip.
(1" pin eye - large dia. tube cast iron stay brackets)
6
B499



Upgrade Kit for above application includes G.8. H.T. slip on type stay pin + HD. 1" dia. stay end to replace original 5/8" dia. knuckle joint




7
B493



R.H. Thread End 1" eye
THREAD
1" UNF
8
B494



L.H. Thread End 1" eye
9
B495
936621M1

L.H. Thread End 5/8" eye
10
B496
3289257M1

Centre Tube
11
B497



Conversion Pin
12
B2635
521006M1

Original Type Pin
13
B4421
514992M2

Original Type Knuckle
14
B1640



Pin 5/8" dia.
15
B1503



Lock Nut
16
B2588



55cm Centre Tube
THREAD
7/8" UNF

Fits B158 heavy duty stay bar
17
B2127



L.H. Thread End
B2128



R.H.Thread End

Original 3/4" UNF ends should be replaced with B158 H/Duty Stay Bar (more economical)
THREAD
3/4" UNF

Original MF type 3/4" UNF (thin) stay bars
18
B141
181986M1

Upper Drawbar Stay
(2 req.)



To20, To30, Te20 (order Upper + Lower for each of these)
MF35, 135, 240
19
B142
181985M1

Lower Drawbar Stay
(2 req.)
