Implement Over-Run Couplings
SAFETY WARNING !
U.S. Safety Standard precludes the use of P.T.O. adaptors that could extend the tractor P.T.O. shaft with the possibility of the universal joint protruding BEYOND THE TRACTOR SAFETY SHIELD.
Before fitting these accessories you must confirm that the tractor involved is fitted with an ASAE or ISO approved tractor Master Power Take-off GUARD as supplied by the tractor manufacturer and that a guard extension has been fitted.
Full guard extension and Safety Instructions are attached to each accessory.
IMPLEMENT OVER-RUN (FREEWHEEL) COUPLINGS
  • THESE UNITS ARE NOT A SAFETY CLUTCH!
  • They prevent the tractor PTO and transmission being driven by implements on the over-run ie. inability to stop single clutch tractors such as the Ferguson Te20, TO20, MF35 single, Ford 8N, 9N, 2N when a Rotary Cutter is attached.
  • No protection under load hence normally used in conjunction with a separate clutch.

SEE COMBINED FREEWHEEL / SAFETY CLUTCHES
NON - QUICK RELEASE TYPE

Special Free Wheel Coupling for early production Te20 and JD tractors that do not have quick release groove on PTO shaft

PART No.
DESCRIPTION
A300002
 1 1/8" x 6 spline female / 1 3/8" x 6 spline male
UNIVERSAL TYPE

Designed for fitting to implement end.
Implement Safety Guard must cover coupling.

Exclusive Design Features Internal Bearing
Not to be fitted to tractor end as coupling may protrude past tractor PTO Guard

PART No.
DESCRIPTION

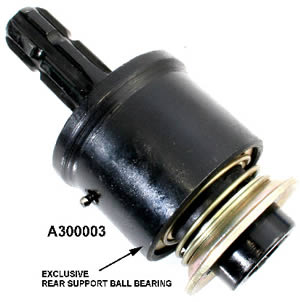

A300003
 1 3/8" x 6 spline male / female
A300001
 1 3/8" x 6 spline male / female Special Reverse Rotation Version for early imported Asian Tractors
B6712
 1 1/8" x 6 spline female / 1 3/8" x 6 spline male
YOKE TYPE



DIMENSIONS
PART No.
APPLICATION
SHAFT SIZE
DESCRIPTION
"A"
"B"
"C"
68mm
2 5/8"
23.8mm
15/16"
61mm
2 13/32"
RK21
Suits A220 Uni-Cross
1 3/8" X 6 splines
Quick Release
Type
83mm
3 1/4"
27mm
1 1/16"
74.6mm
2 15/16"
RK41
Suits A421 Uni-Cross
101mm
4"
30.2mm
1 3/16"
92mm
3 5/8"
RK61
Suits A622 Uni-Cross
115mm
4 1/2"
42mm
1 21/32"
104mm
4 3/32"
RK26120
Suits A026 Uni-Cross
1 3/4" X 20 splines
Clamp Type
115mm
4 1/2"
42mm
1 21/32"
104mm
4 3/32"
RK26134
Suits A026 Uni-Cross
1 3/4" X 6 splines
Clamp Type

COMBINED OVER-RUN (FREEWHEEL)
& SAFETY CLUTCHES
Heavy Duty Units allow PTO driven implements to freewheel with adjustable safety protection under load.
  • Prevents expensive damage to internal tractor PTO packs.
  • Prevents single clutch tractors from being driven forward by PTO over-run.
  • Integral heavy duty adjustable disc type safety clutch protects PTO drive line.


Click Below
Standard - Freewheel
Safety Clutches
Blue Torque Combined - Freewheel Safety Clutches
