 B3728 Ref 7 |
 |

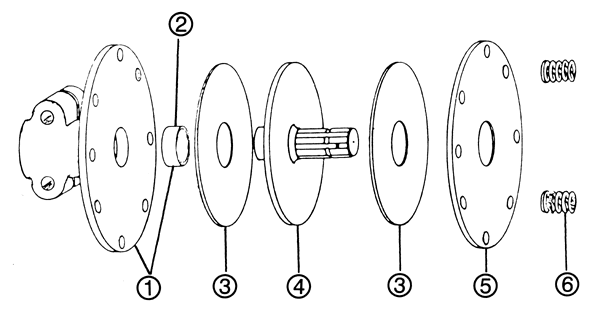

REF |
PART
No. |
DESCRIPTION |
1 |
B3720 |
1
3/8" x 6 Spline Base Assembly (includes bush) |
B3717 |
1
3/8" x 21 Spline Base Assembly (includes bush) |
|
B4720 |
1
3/4" x 20 Spline Base Assembly (includes bush) |
|
B6694 |
1
1/4" Round Bore 1/4" keyway base assembly
(includes bush) |
|
B4154 |
1
3/8" Round Bore 3/8" keyway base assembly
(includes bush) |
|
B6158 |
1
1/2" Round Bore 3/8" keyway base assembly
(includes bush) |
|
2 |
B4172 |
Bush
1 1/8" ID |
3 |
B3721 |
Friction
Disc 6 1/2" OD x 2 1/2" ID (2 req) |
4 |
B3722 |
1
3/8" x 6 spline Drive Plate 6 1/2" OD - 1
1/8"dia Spigot |
B6791 |
1
3/4" x 20 spline Drive Plate 6 1/2" OD - 1
1/8"dia Spigot |
|
5 |
B4155 |
Outer Pressure Plate |
6 |
B3723 |
Zinc Plated (Silver) Spring
(8 req.) |
B3729 |
Blue Heavy Duty Spring
(8 req.) |
|
7 |
B3728 |
Cotter Clamp Bolt and Nut for 20 spline cotter type base. |
