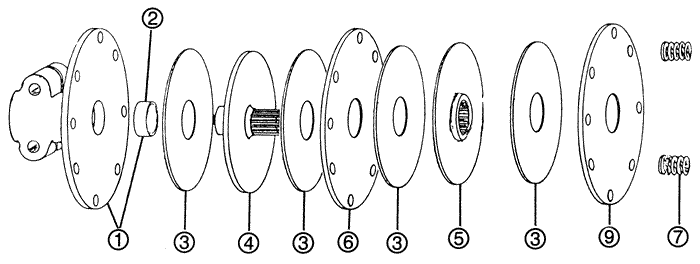

mm (8") 4 Plate Clutch
|
 |
 |
 |
 |
 |
|
|
 B3728 Ref 8 |
 |
REF |
PART
No. |
DESCRIPTION |
1 |
B3720 |
1
3/8" x 6 Spline Base Assembly (includes bush) |
B4720 |
1
3/4" x 20 Spline Base Assembly (includes bush)
Uprated H.T. Casting |
|
B5720 |
1 3/4" x 6 Spline Base Assembly (includes bush) Uprated H.T. Casting |
|
2 |
B4172 |
Bush
to suit 1 3/8" x 6 spline base |
B6828 |
Bush
to suit 1 3/4" x 20 spline base |
|
3 |
B3721 |
Friction
Disc 165mm (6 1/2") OD x 64mm (2 1/2") ID
(4 req) |
4 |
B4722 |
1
3/8" x 6 spline Drive Plate 165mm (6 1/2")
OD - 1 1/8"dia Spigot |
B6791 |
1
3/4" x 20 spline Drive Plate 165mm (6 1/2")
OD x 135mm (5 1/4") total length |
|
5 |
B4171 |
Intermediate
Pressure Plate 1 3/8" x 6 spline |
B7071 |
Intermediate
Pressure Plate 1 3/4" x 20 spline |
|
6 |
B4255 |
Pressure Plate - 3mm (0.118") Thick |
7 |
B3723 |
Zinc Plated (Silver) Spring
(8 req.) |
B3729 |
Blue Heavy Duty Spring
(8 req.)
|
|
8 |
B3728 |
Cotter Clamp Bolt and Nut for 20 spline cotter type base. |
9 |
B4155 |
Front Pressure Plate |
