200
mm (8") Safety Clutch
|
 |
 |
 |
 |
 |
|
|
|
200

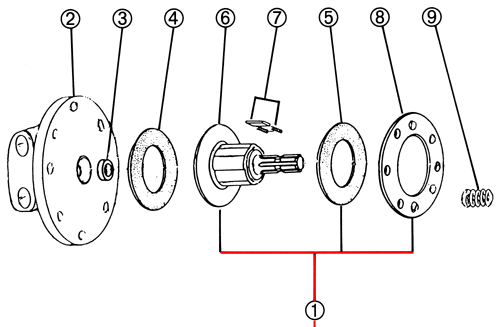

mm (8") OD COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS
|
 |
|
|
Conversion
Kit
for Standard 8" Clutch |
|
REF |
PART
No. |
DESCRIPTION |
1 |
B3754 |
KIT
- Converts standard B3605 Clutch to Combined Freewheel |
2 |
B3720 |
1
3/8" x 6 Spline Base assembly (includes bush) |
3 |
B4172 |
Bush
1 1/8" ID |
4 |
B3721 |
Rear
Facing 165mm (6 1/2") x 63mm (2 1/2") - 1
req |
5 |
AB160 |
Front
Facing 160mm (6 19/64") x 96mm (3 25/32")
- 1 req |
6 |
B2302 |
Freewheel Unit 1 3/8" x 6 spline for 100 HP 2 plate clutch |
B1302 |
Freewheel Unit 1 3/4" x 20 spline for 100 HP 2 plate clutch | |
7 |
B352 |
Repair
Kit for Freewheel Unit (NOT Recommended if body worn) |
8 |
B3751 |
Outer
Pressure Plate 200mm (8") OD x 95mm (3 3/4")
ID |
9 |
B3723 |
Zinc Plated (Silver) Spring
(8 req.) |
B3729 |
Blue Heavy Duty Spring
(8 req.)
|
