200
mm (8") Safety Clutch
|
 |
 |
 |
 |
 |
|
|
|

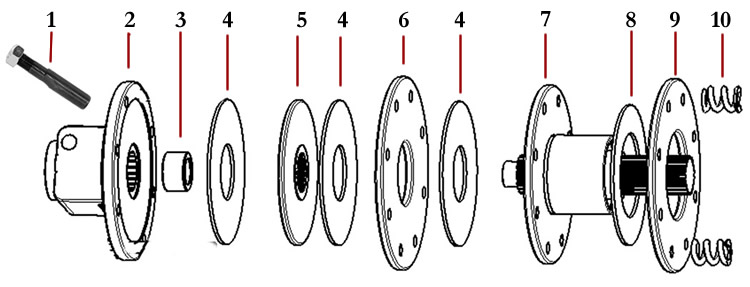

200mm (8") OD COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS
|
 |
REF |
PART
No. |
DESCRIPTION |
1 |
B3728 |
Cotter Clamp Bolt and Nut |
2 |
B3720 |
1
3/8" x 6 Spline Base assembly (includes bush and clamp bolts) |
B4720 |
1 3/4" x 20 Spline Base assembly (includes bush and clamp bolts) |
|
B5720 |
1 3/4" x 6 Spline Base assembly (includes bush and clamp bolts) |
|
3 |
B4172 |
Bush
for B3720 Base |
B6828 |
Bush for B4720 / B5720 Base |
|
4 |
B3721 |
Facing 165mm (6 1/2") x 63mm (2 1/2") - 3
req |
5 |
B4171 |
Drive Plate for B1301 Overrun Assembly |
B7071 |
Drive Plate for B1302 Overrun Assembly |
|
6 |
B4255 |
Pressure Plate - 3mm (0.118") Thick |
7 |
B1300 |
Freewheel Unit 1 3/4" x 20 spline for 150 HP 4 plate clutch |
B1301 |
Freewheel Unit 1 3/8" x 6 spline for 150 HP 4 plate clutch | |
8 |
AB160 |
Front Facing 160mm (6 19/64") x 96mm (3 25/32") - 1 req |
9 |
B3751 |
Outer
Pressure Plate 200mm (8") OD x 95mm (3 3/4")
ID |
10 |
B3723 |
Zinc Plated (Silver) Spring
(8 req.) |
B3729 |
Blue Heavy Duty Spring
(8 req.)
|
